Vibrating beam screed hire
Everything you need to know about Vibrating beam screed hire
Overview

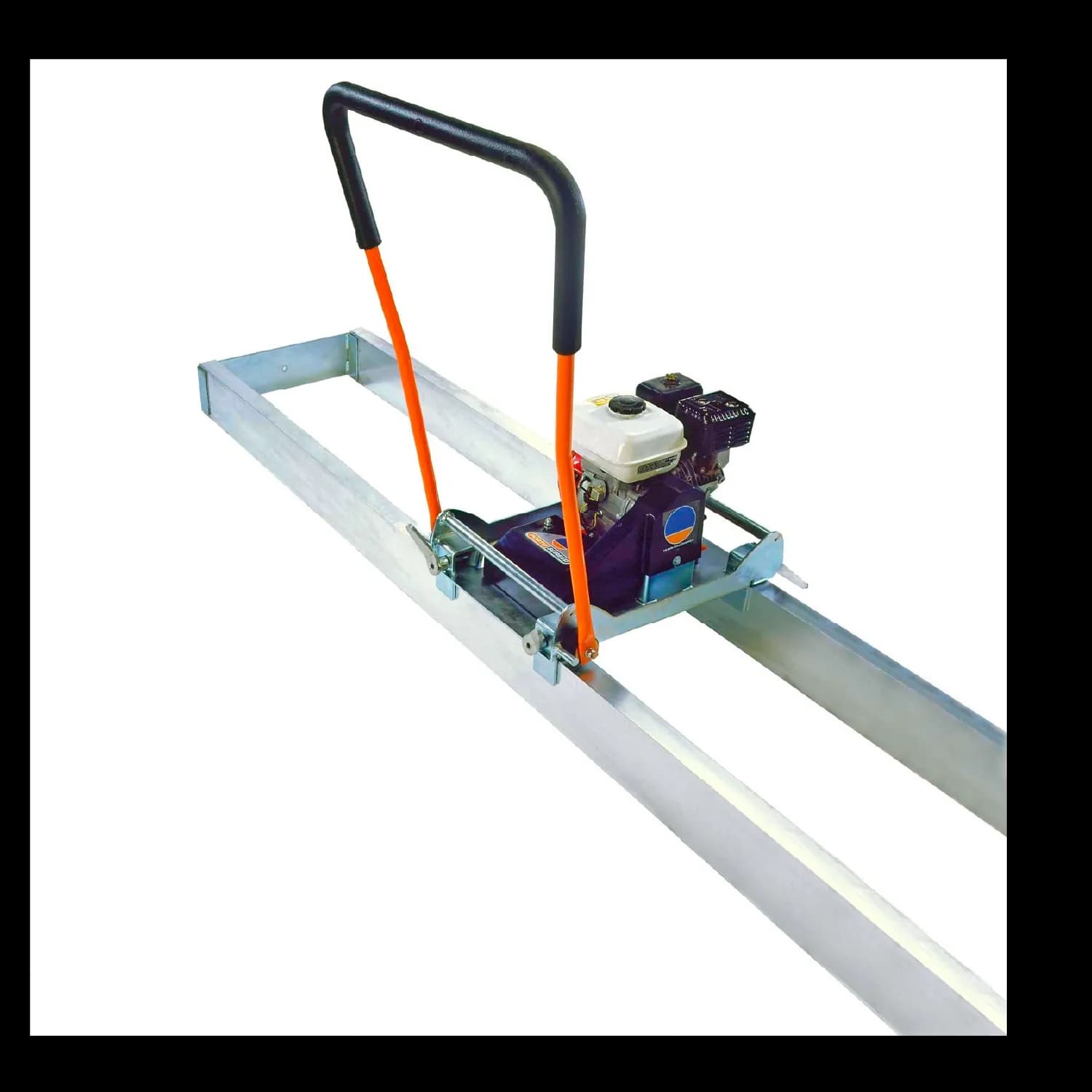

Vibrating Beam Screed Hire Twin Beam 4.2–8.2m
The twin-beam vibrating screed system in 4.2 to 8.2 metre configurations for levelling and consolidating large concrete and screed pours provides a reliable solution for large slab levelling, warehouse floor screed, car park pour, agricultural building, continuous floor plate. Each unit features aluminium twin beam sections, petrol vibrator units, rigid truss frame and sectional beam connectors designed for long-term reliability in British conditions, making this hire ideal for both commercial and residential applications throughout the United Kingdom.
Construction and Design
- Twin beam truss resists sag on spans up to 8.2 metres across British warehouse floor pours
- Modular sections configure 4.2, 6.2 and 8.2 metre lengths for pour width matching
- Petrol vibrator motors on both beams deliver uniform vibration across full screed width
- Winch or manual pull system draws beam assembly along formwork rails during pour
- Beam height adjustment for screed thickness from 50mm to 200mm on floor specifications
- Sectional transport in standard British luton van length when disassembled
Safety Standards
- Beam assembly requires minimum crew for assembly and pull—understaffed operation loses level control
- Petrol vibrator exhaust positioned away from operators during enclosed building pours
- Formwork and rails rated for beam assembly weight plus operator loading
- Exclusion zone at leading edge—operators pull beam walking backwards on stable access
- HAVS awareness during vibrator motor running throughout long British floor pours
Available in 4.2m to 8.2m to suit your project requirements. Select the option you need and hire online with delivery and collection included. No trade account needed.
Perfect for concreting specialists, floor laying contractors, groundworks firms, civil engineering gangs, screed pumping teams who require reliable, safe and efficient equipment for their projects across the United Kingdom.
General Specification
Technical Specifications
Built with aluminium twin beam sections, petrol vibrator units, rigid truss frame and sectional beam connectors ensuring maximum reliability for UK hire projects. The design incorporates proven engineering principles for maximum stability and safety during operation in British work environments.
Construction Features
- Twin beam truss resists sag on spans up to 8.2 metres across British warehouse floor pours
- Modular sections configure 4.2, 6.2 and 8.2 metre lengths for pour width matching
- Petrol vibrator motors on both beams deliver uniform vibration across full screed width
- Winch or manual pull system draws beam assembly along formwork rails during pour
- Beam height adjustment for screed thickness from 50mm to 200mm on floor specifications
- Sectional transport in standard British luton van length when disassembled
Safety Standards
- Beam assembly requires minimum crew for assembly and pull—understaffed operation loses level control
- Petrol vibrator exhaust positioned away from operators during enclosed building pours
- Formwork and rails rated for beam assembly weight plus operator loading
- Exclusion zone at leading edge—operators pull beam walking backwards on stable access
- HAVS awareness during vibrator motor running throughout long British floor pours
General
- Product: Vibrating beam screed
- Category: Concrete & compaction — Screeds
- Available sizes: 4.2m to 8.2m
- Delivery: UK-wide kerbside delivery
- Hire includes delivery, collection, Hire Shield and VAT
Key Features
Product Features
Designed with the professional user in mind, the vibrating beam screed range delivers reliable performance for projects across the United Kingdom.
Key Features
- 8.2m span single-pass levelling on standard British warehouse bay widths
- Twin beam rigidity eliminates mid-span dip common on single aluminium screed bars
- Vibration consolidates concrete during strike-off reducing separate poker coverage area
- Modular hire length matched to pour—not paying for 8m beam on 4m domestic extension
- Petrol vibrators independent of site power during early-phase building pours
- Professional finish specification on commercial floors without laser screed capital investment
Applications
- Warehouse and distribution centre floor slab levelling during pour
- Car park deck concrete strike-off on multi-storey structures
- Agricultural grain store and livestock building large floor pours
- Retail unit open floor plate screed levelling before power float
- School and leisure centre sports hall floor screed placement
- Self-build large footprint house slab where specification demands beam screed finish
- External yard and hardstanding levelling on commercial and industrial sites
- Screed overlay levelling on renovation projects with pumped screed supply
Hire Benefits
- Flexible hire periods from one day upwards across the United Kingdom
- Delivery and collection included in every hire price
- Hire Shield damage cover for peace of mind on British sites
- No trade account needed — book online 24/7
- Next-day delivery available throughout Britain
- Professional-grade equipment maintained and safety-checked before every hire
